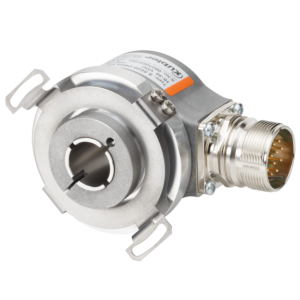

Kubler shaft Encoder

₹9,545.00

Kubler 5000 / 5020 incremental encoders offer special resistance to vibrations and installation error due to their robust bearing construction using the Safety Lock™ design. The stable die-cast housing, the high protection up to IP67 and the wide temperature range from -40°C to +85°C allow universal use.

Category Rotary Encoder

Add To Wishlist

Description

MECHANICAL

Sendix 5000
Dimension Ø 50 mm

Shaft type 6 mm,8mm,10mm,11mm,12mm, 1/4 ” , 3/8 ” shaft, with flat surface

Flange type Synchro flange / Servo flange/Clamping flange/Square flange/Euro flange

Ø 50.80 mm/ Ø 52.30 mm/Ø 58.00 mm/Ø 63.50 mm/ Ø 63,50 mm/Ø 115.00 mm

Working temperature -40 °C … +85 °C

Protection level IP65/IP66/IP67

Connection types Axial cable/Radial cable

Max. rotational speed 12.000 min-1

Weight 400 g

ELECTRICAL

Scanning optical

Resolution max5.000 ppr incremental

Supply voltage 5 V DC / 5…30 V DC/10…30 V DC

Interfaces Push-pull/TTL / RS422/Open Collector
