Magnetic Tape

Magnetic length measuring system, Incremental measuring systems determine the actual position or the distance covered by counting pulses using a suitable controller. With a magnetic length measuring system, the pole changes on the magnetic tape are evaluated and intermediate values are interpolated. Linear speed and position detection with precise optical or robust magnetic measuring systems, , incremental – suitable for the harshest environments.

Extremely robust, High protection up to IP69k,Contactless,Wear-free,Simple mounting.

Brand                                     :  Diamond Turkey  make

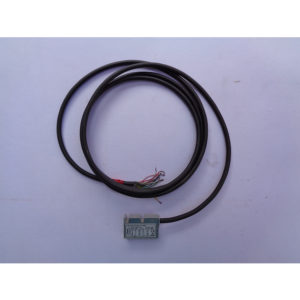

Model                                     : MLS120

Measuring Range                :  Up to 100 meters

Resolution                            :  1µm, 5µm, 10µm, 25µm, 50µm, 62.5µm, 80µm, 100µm (others on request)

Output Type                         : Push-Pull or TTL RS422 Line Driver

Magnetic Tape                     : B2, B5

Output Signals                    : A, /A, B, /B, Z, /Z

Input Current                     : Maximum 40 mA per channel

Supply Voltage                   :  PP: 10..30 VDC or TTL: 5 VDC

Housing Material              :  Aluminum

Electrical Connection       :  D-Sub 9 pin, 5 or 8 x 0,14 mm2 shielded cable

Operating Speed               : 3 m/s

Repeatability                     : ± 1 Pulse

Operating Temperature  :  -25°C … +85°C

Protection Class IP67

Application :

Machinery Industry

PVC Cutting Machines

Woodworking Machines

Presses

Textile Machinery

Marble Machines

Transfer Machines

Saws

Metal Processing Machines

Turning, Milling

Bohrwerk

Dragline

Automation and Robots
